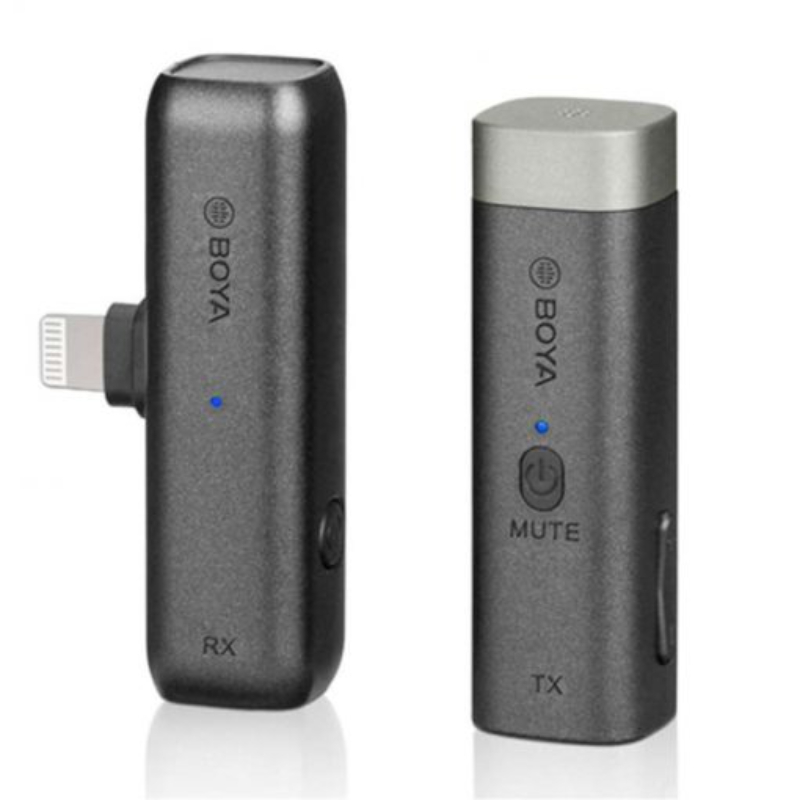

The BOYA BY-WM3D 2.4GHz wireless microphone system features one transmitter and one receiver, both of them are compact and lightweight.
Ultra-compact Wireless Microphone SystemSmall size & light weight, the transmitter is only 10.5g (0.37oz). And the BY-WM3D is equipped with a charging case that can charge and pair the transmitter and receiver. After one full charge, the TX/RX can continue working for about 4.5/8 houThree Interchangeable Connecto Make It UnivealAnd just like the BY-WM3U, the receiver of BY-WM3D also features three interchangeable connecto, two of which are the same as the ones of BY-WM3U, namely T and TR connector. But its last connector is Apple MFI certified Lightning connector. These three plugs make it compatible with all recording devices with Lightning or 3.5mm input socket.In-built Microphone to Avoid HassleWith an in-built omnidirectional microphone on the transmitter, it is easy to use. After pairing, just connect the receiver with your recording device, pin the transmitter on your collar to get started.
Packing Lists• Charging Case
• Clip-on Minature Transmitter
• Professional Compact Receiver
• MFI Certified Lightning Adapter
• 3.5mm T Adapter
• 3.5mm TR Adapter
• Foam Windshield
• Fur windscreen
• 30cm/11.8″Type-C to USB-A Charging Cable
Specification
Transmission Type: 2.4GHz
Polar Pattern: Omnidirectional
Frequency Response: 20Hz-20KHz (±3dB)
Distortion: <0.1%
Sampling Rates: 48kHz
Bit Depth: 16Bit
Signal-to noise ratio: 75db or more
Sensitivity: -42dB±3dB (1dB=1V/Pa@1kHz)
Operating Distance: 20m(without obstacle)
Power Consumption: TX: 80mW RX: 60mW
Working Time: TX: 4.5 hou * two timesRX: 8 hou * two times
Charing Time: TX:2 houRX:2 houCharging Case:2 hou
Charging Port(Charging Case): Type-C
Battery Capacity: TX:100mARX:100mACharging Case:1000mA
Size: Charging Case:120*77*30.5m(4.7*3*1.2″)TX:51.8*15.6*18mm(2*0.6*0.7″)RX:54*15.6*15.6mm(2*0.6*0.6″)
Weight: TX+RX+Charging Case: 129g (4.5 oz)TX:10.5g (0. 37 oz) RX:9.5g (0. 33 oz)
Download
BY-WM3 Wireless Microphone Manual
